20 Bar Skid-Mounted Screw Air Compressor for Laser Cutting Systems
Short Description:

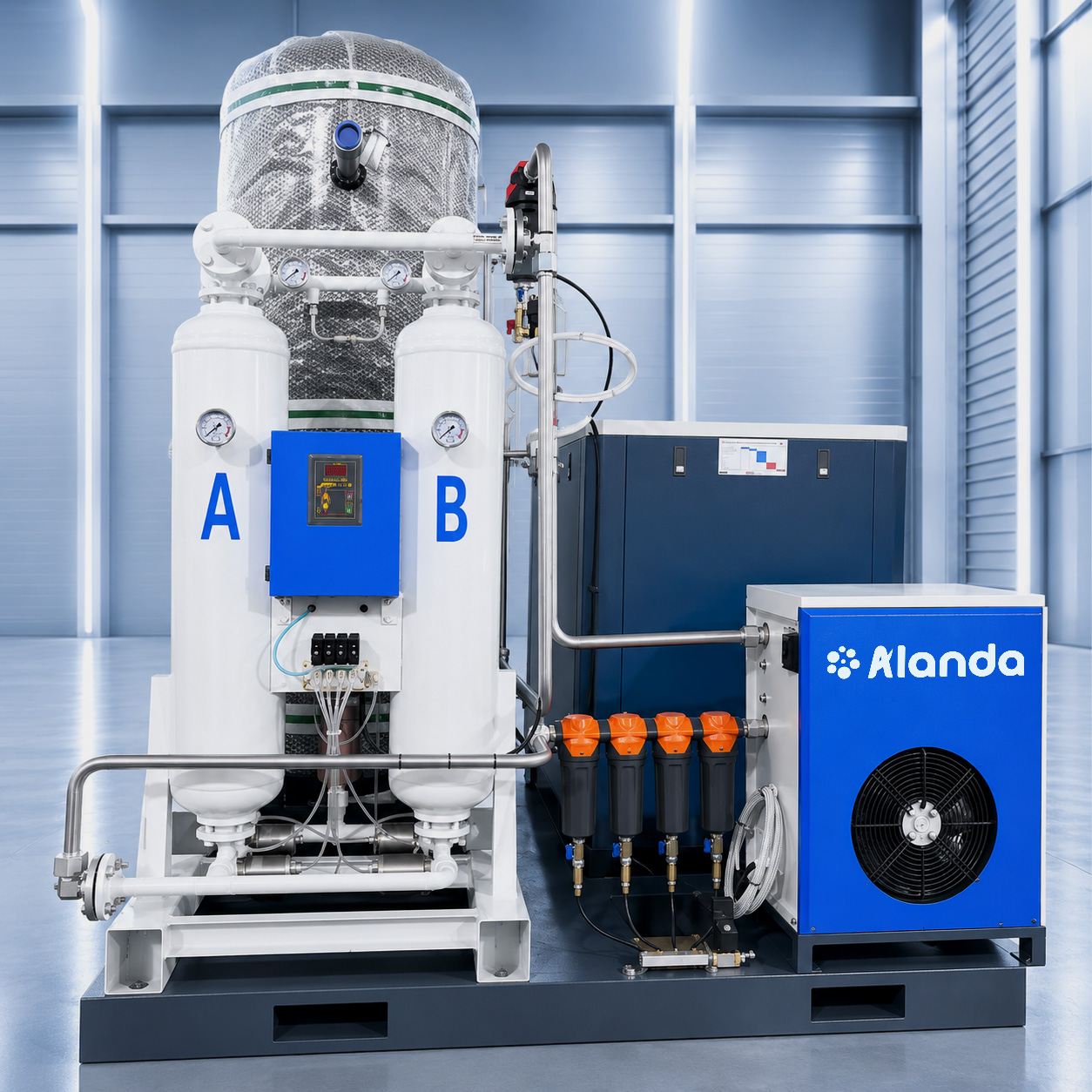

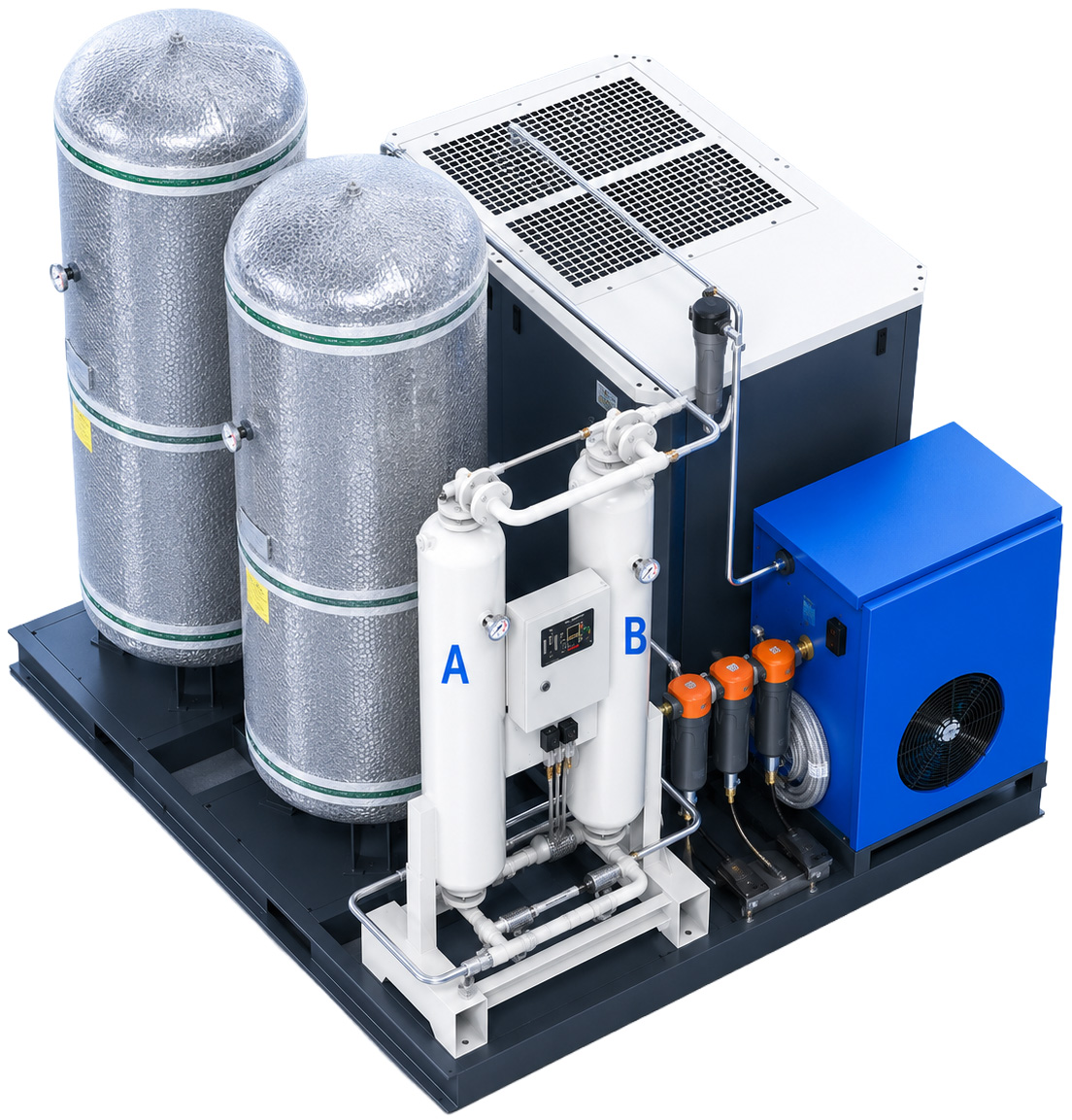

The 20 Bar Skid-Mounted Laser Air Compressor System integrates a PM VSD screw air compressor, high-efficiency air dryer, dual 600L air tanks, modular adsorption dryer, and CTAFH 5-stage precision filtration into a single skid-mounted package. Designed for laser cutting applications, it delivers clean, dry, high-pressure compressed air with energy-efficient performance, easy installation, and reliable operation.
Suitable for 30KW-60KW fiber/laser cutting machine
1.Adopts permanent magnet variable frequencyair compressor,energy-saving and efficent.
2.Plate-changing air dryer has better processingeffect and longer life.
3.Two tower adsorption dryer,low powerconsumption,higher efficiency in handling air compressors.

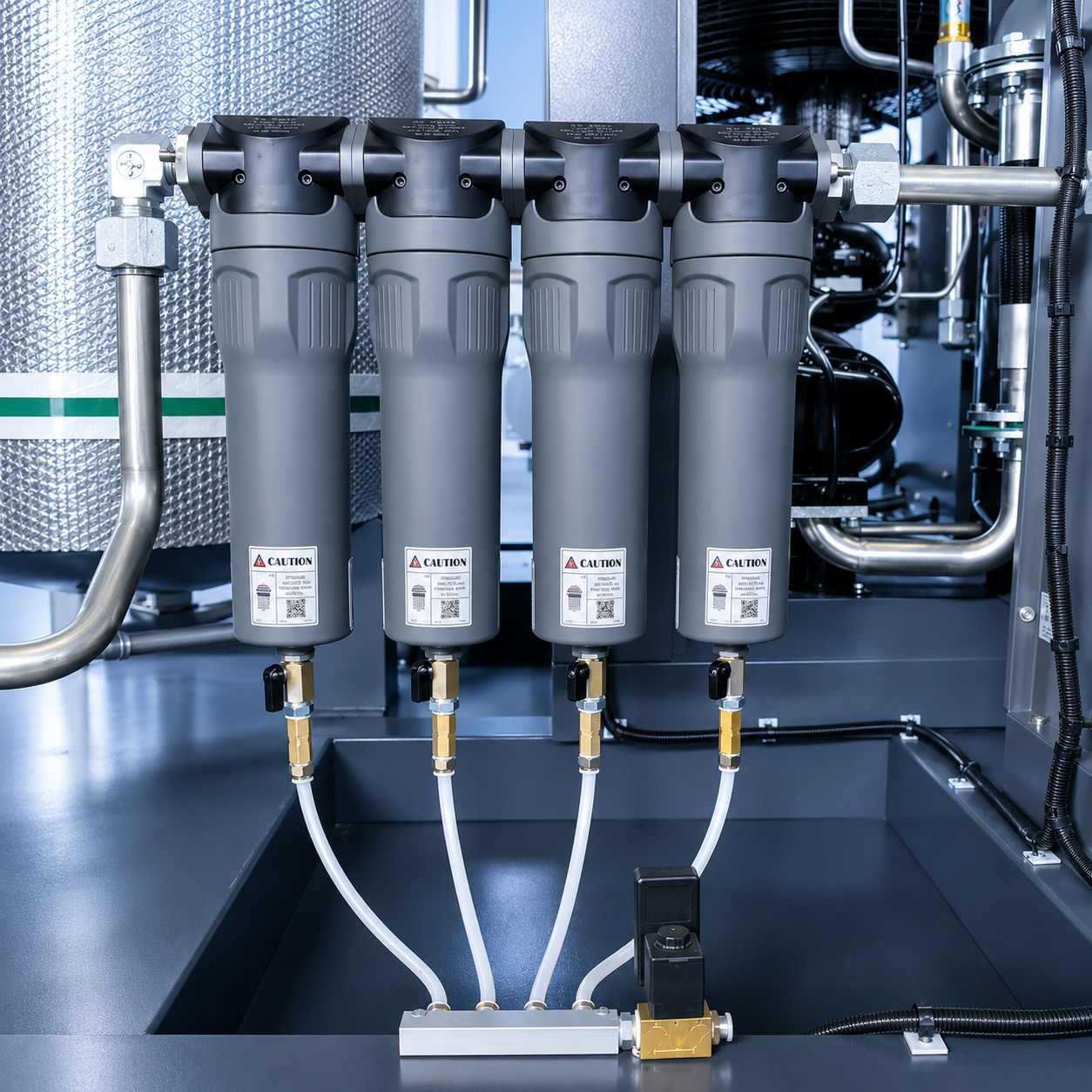

4.CTAFH 5-clase precision filter,provide absolutely pure air and better protect the lens of the lasercutting machine.

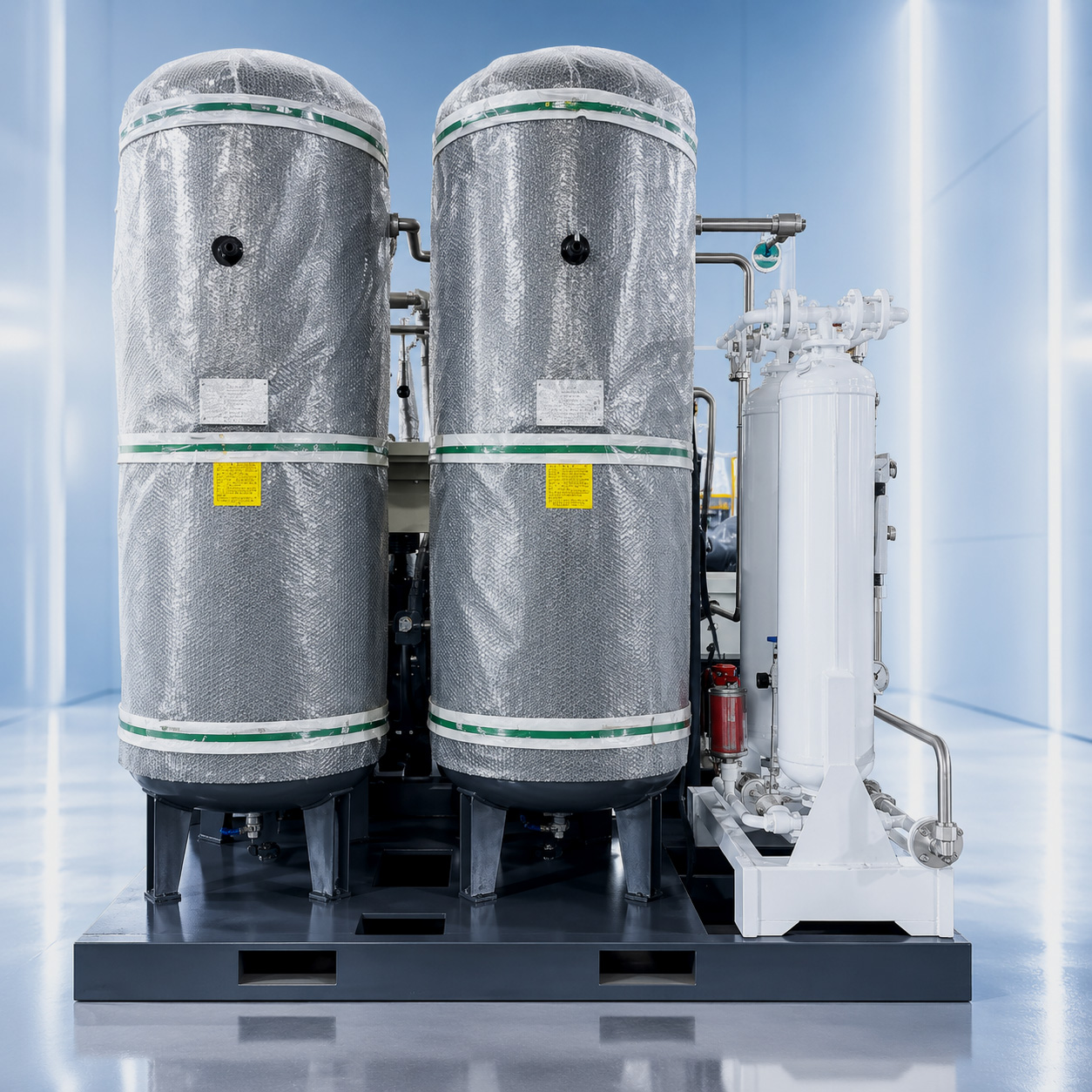

5.2*600L tank,provide guarantee for the stable operation of the air compressor.
Skid Mounted Laser Compressor
| Model | Power | Pressure | Air Supply | Type | Size | Outlet size | Filter level | Filtration accuracy |
|---|---|---|---|---|---|---|---|---|
| Laser-30PV/20 | 30KW 20HP | 20bar | 1.92 m3/min 67.2 cfm | PM VSD | 2030 × 1780 × 2190 mm | DN40 | CTAXF 5-class | Oil removal Water removal Dust removal Filtration accuracy: 0.001 um |
| Laser-40PV/20 | 30KW 40HP | 20bar | 2.72 m3/min 95.2 cfm | PM VSD | 2200 × 2020 × 2190 mm | DN40 | CTAXF 5-class | Oil removal Water removal Dust removal Filtration accuracy: 0.001 um |
| Laser-50PV/20 | 37KW 50HP | 20bar | 3.4 m3/min 119 cfm | PM VSD | 2200 × 2020 × 2190 mm | DN40 | CTAXF 5-class | Oil removal Water removal Dust removal Filtration accuracy: 0.001 um |
