OEM 22kW 4-in-1 Integrated Rotary Screw Air Compressor | 7/8/10/12 Bar | 500L Tank
Short Description:
The 20/25/30 Bar PM VSD Two-Stage High-Pressure Screw Air Compressor is designed for use with an air tank, refrigerated air dryer, and precision filter to deliver clean, high-pressure compressed air. Available from 75kW to 250kW, it offers high efficiency, low noise, and reliable performance for blow molding, petrochemical, electronics, and other demanding industrial applications.
Advantages
20–30 Bar Two-Stage High-Pressure Screw Air Compressors deliver high efficiency, low noise, and low vibration for demanding industrial applications. Ideal for blow molding, petrochemical, electronics, and other high-pressure processes, they provide reliable and energy-efficient compressed air performance.

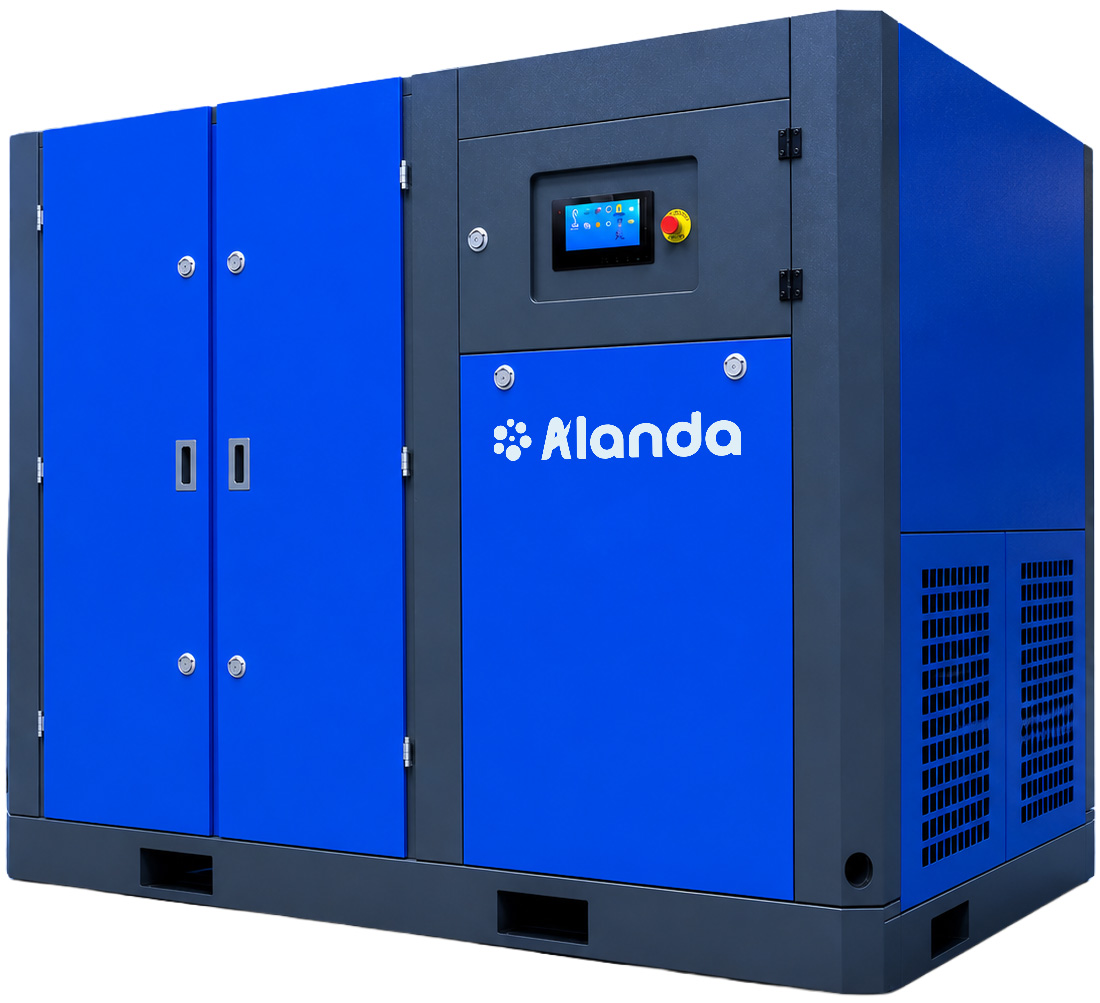

High Pressure Two-Stage PM VSD Screw Air Compressor 20-30bar
| Model | ALT 100PV | ALT 125PV | ALT 150PV | ALT 175PV | ALT 200PV | ALT 250PV | ALT 275PV | ALT 300PV | ALT 350PV |
|---|---|---|---|---|---|---|---|---|---|
| Power(kw) | 75 | 90 | 110 | 132 | 160 | 185 | 200 | 220 | 250 |
| Horsepower(hp) | 100 | 125 | 150 | 175 | 200 | 250 | 275 | 300 | 350 |
| Air displacement/Working pressure(m³/min./ 20 bar) | 8.41/20 | 9.46/20 | 11.56/20 | 14.57/20 | 16.33/20 | 21.3/20 | 22.66/20 | 23.27/20 | 25.66/20 |
| Air displacement/Working pressure(m³/min./ 25 bar) | 7.18/25 | 8.19/25 | 10.24/25 | 12.22/25 | 14.18/25 | 18.10/25 | 19.55/25 | 21.0/25 | 24.13/25 |
| Air displacement/Working pressure(m³/min./ 30 bar) | / | 6.95/30 | 8.91/30 | 10.89/30 | 12.78/30 | 16.34/30 | 17.76/30 | 19.18/30 | 21.91/30 |
| Air outlet diameter | DN50 | DN50 | DN65 | DN65 | DN80 | DN80 | DN100 | DN100 | DN100 |
| Noise level dB(A) | 76±3 | 76±3 | 76±3 | 76±3 | 76±3 | 80±3 | 80±3 | 80±3 | 84±3 |
| Type | PM VSD | PM VSD | PM VSD | PM VSD | PM VSD | PM VSD | PM VSD | PM VSD | PM VSD |
| Driven method | Direct driven | Direct driven | Direct driven | Direct driven | Direct driven | Direct driven | Direct driven | Direct driven | Direct driven |
| Start method | PM VSD | PM VSD | PM VSD | PM VSD | PM VSD | PM VSD | PM VSD | PM VSD | PM VSD |
| Length (mm) | 1920 | 2600 | 2600 | 2600 | 3000 | 3000 | 3200 | 3600 | 3600 |
| Width (mm) | 1270 | 1600 | 1600 | 1600 | 1750 | 1750 | 2000 | 2200 | 2200 |
| Height (mm) | 1600 | 1900 | 1900 | 1900 | 2000 | 2000 | 2200 | 2500 | 2500 |
| Weight (kg) | 1450 | 1500 | 1600 | 1800 | 2700 | 3000 | 3800 | 4800 | 5100 |
