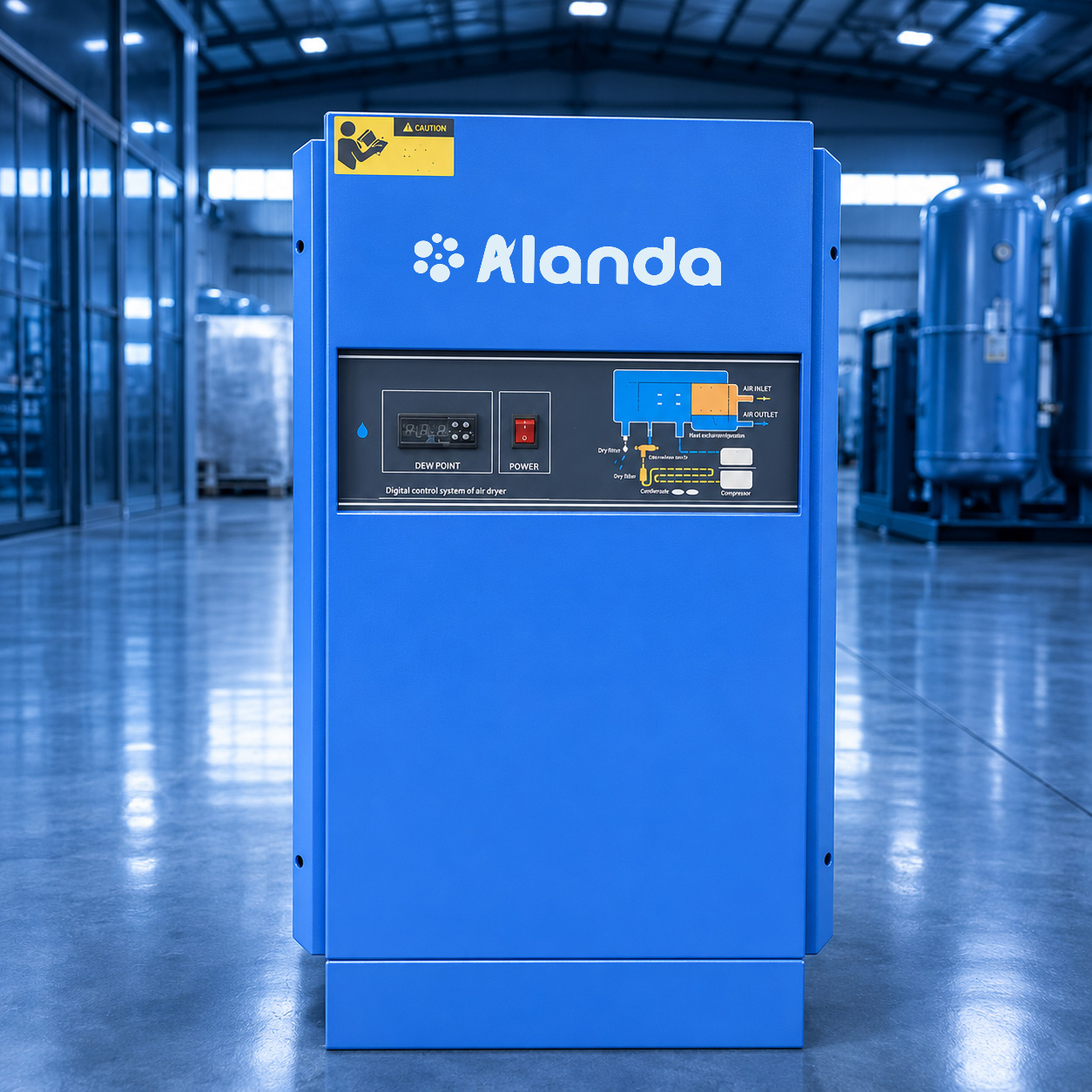

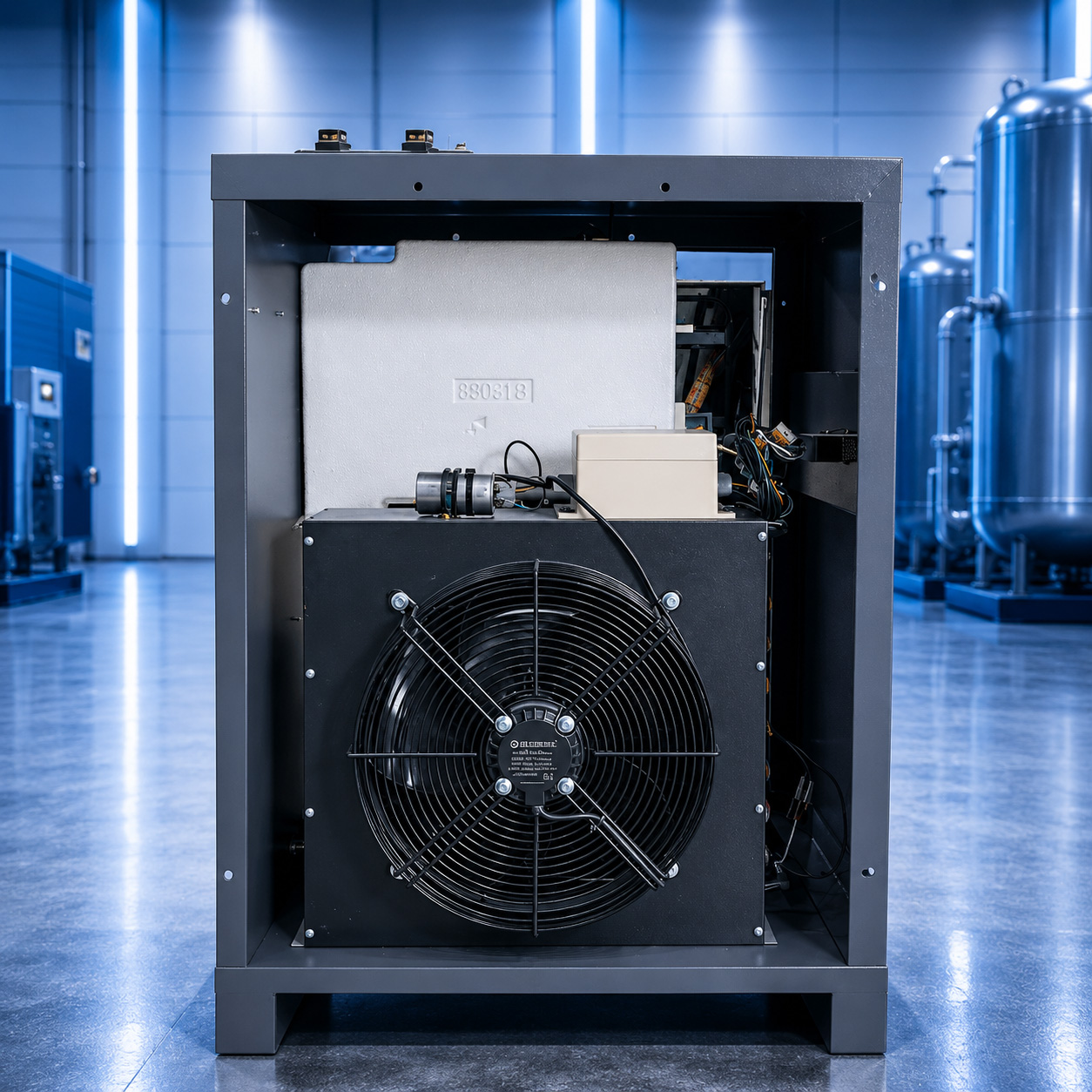

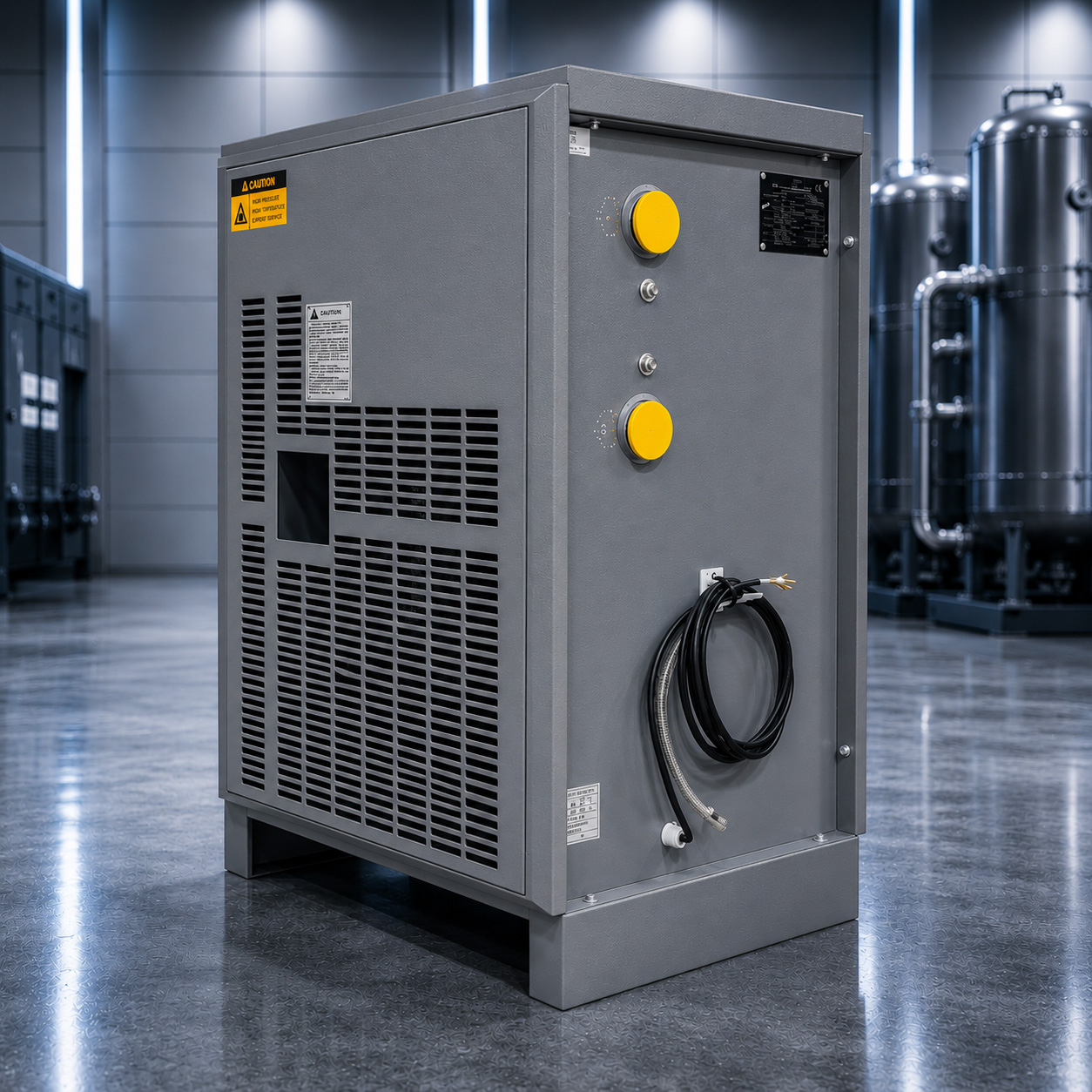

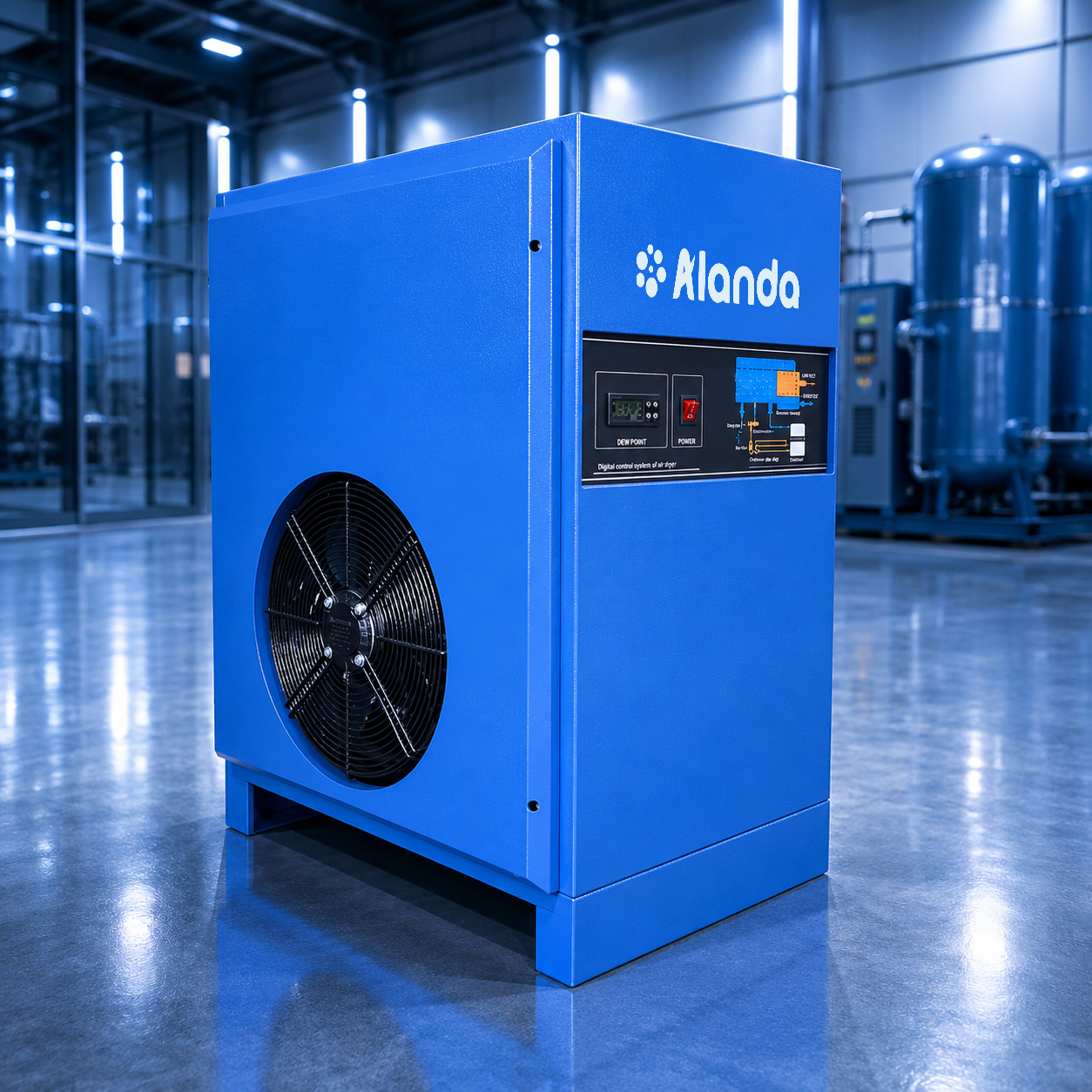

16 Bar Plate Heat Exchanger Refrigerated Air Dryer for Screw Air Compressors
Short Description:
The Refrigerated Air Dryer is an essential component of a screw air compressor system, designed to remove moisture, oil, and other contaminants from compressed air before it reaches pneumatic equipment and production lines. By supplying clean, dry compressed air, it helps reduce pipeline corrosion, protect downstream equipment, improve product quality, and ensure reliable system performance. Designed for demanding environments, the air dryer is compatible with high-temperature screw air compressors with an inlet air temperature of up to 82°C, ensuring stable and reliable operation even in hot climates such as those found in Africa, the Middle East, and other high-ambient-temperature regions.
| Model | AFD-1.5H | AFD-2.5H | AFD-3.5H | AFD-6.5H | AFD-8.5H | AFD-10.5H | AFD-13.5H | AFD-15.5H | AFD-20H | AFD-25H | AFD-30H | AFD-40H | AFD-50H | AFD-60H | AFD-80H | AFD-100H |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Processing Capacity (m³/min) | 1.6 | 2.5 | 3.8 | 6.8 | 8.5 | 11.5 | 13.5 | 15.5 | 22 | 25 | 35 | 45 | 55 | 65 | 85 | 110 |
| Working Pressure (bar) | 2-10 bar (12/16/20/30 bar customizable) | |||||||||||||||
| Dew Point Temperature (°C) | 2-10°C | |||||||||||||||
| Operating Temperature | ≤80°C | |||||||||||||||
| Voltage | 220V/50Hz/1P or 220V/60Hz/1P or other voltage | 220V/50Hz/1P or 220V/60Hz/1P or other voltage | 220V/50Hz/1P or 220V/60Hz/1P or other voltage | 220V/50Hz/1P or 220V/60Hz/1P or other voltage | 220V/50Hz/1P or 220V/60Hz/1P or other voltage | 220V/50Hz/1P or 220V/60Hz/1P or other voltage | 220V/50Hz/1P or 220V/60Hz/1P or other voltage | 380V/50Hz/3P or 220V/440V/60Hz/3P or other voltage | 380V/50Hz/3P or 220V/440V/60Hz/3P or other voltage | 380V/50Hz/3P or 220V/440V/60Hz/3P or other voltage | 380V/50Hz/3P or 220V/440V/60Hz/3P or other voltage | 380V/50Hz/3P or 220V/440V/60Hz/3P or other voltage | 380V/50Hz/3P or 220V/440V/60Hz/3P or other voltage | 380V/50Hz/3P or 220V/440V/60Hz/3P or other voltage | 380V/50Hz/3P or 220V/440V/60Hz/3P or other voltage | 380V/50Hz/3P or 220V/440V/60Hz/3P or other voltage |
| Compressor Power (kW) | 0.7 | 0.9 | 1 | 1.6 | 1.8 | 2 | 3 | 3.1 | 4.5 | 4.5 | 6.9 | 9.2 | 11 | 14 | 18 | 20 |
| Fan Power (W) | 95 | 120 | 240 | 300 | 300 | 380 | 420 | 4.8 | 600 | 600 | 750 | 1080 | 2020 | 2020 | 1560 | 3330 |
| Air Outlet Diameter (mm) | ZG1" | ZG1.5" | ZG1.5" | ZG2" | ZG2" | ZG2.5" | ZG2.5" | DN65 | DN80 | DN80 | DN100 | DN100 | DN125 | DN125 | DN150 | DN150 |
| Length (mm) | 750 | 800 | 923 | 995 | 995 | 1125 | 1125 | 1120 | 1300 | 1300 | 1600 | 1800 | 1900 | 1900 | 2500 | 2800 |
| Width (mm) | 420 | 440 | 500 | 585 | 585 | 625 | 625 | 700 | 750 | 750 | 820 | 820 | 900 | 900 | 1000 | 1000 |
| Height (mm) | 730 | 800 | 910 | 1080 | 1080 | 1045 | 1045 | 1230 | 1230 | 1230 | 1520 | 1560 | 1570 | 1570 | 1900 | 2100 |
| Machine Net Weight (kg) | 45 | 60 | 76 | 90 | 95 | 120 | 150 | 190 | 260 | 280 | 390 | 420 | 560 | 560 | 680 | 850 |
