1.6MPa (232 PSI) Skid-Mounted Laser Screw Air Compressor | 37kW (50HP)
Short Description:

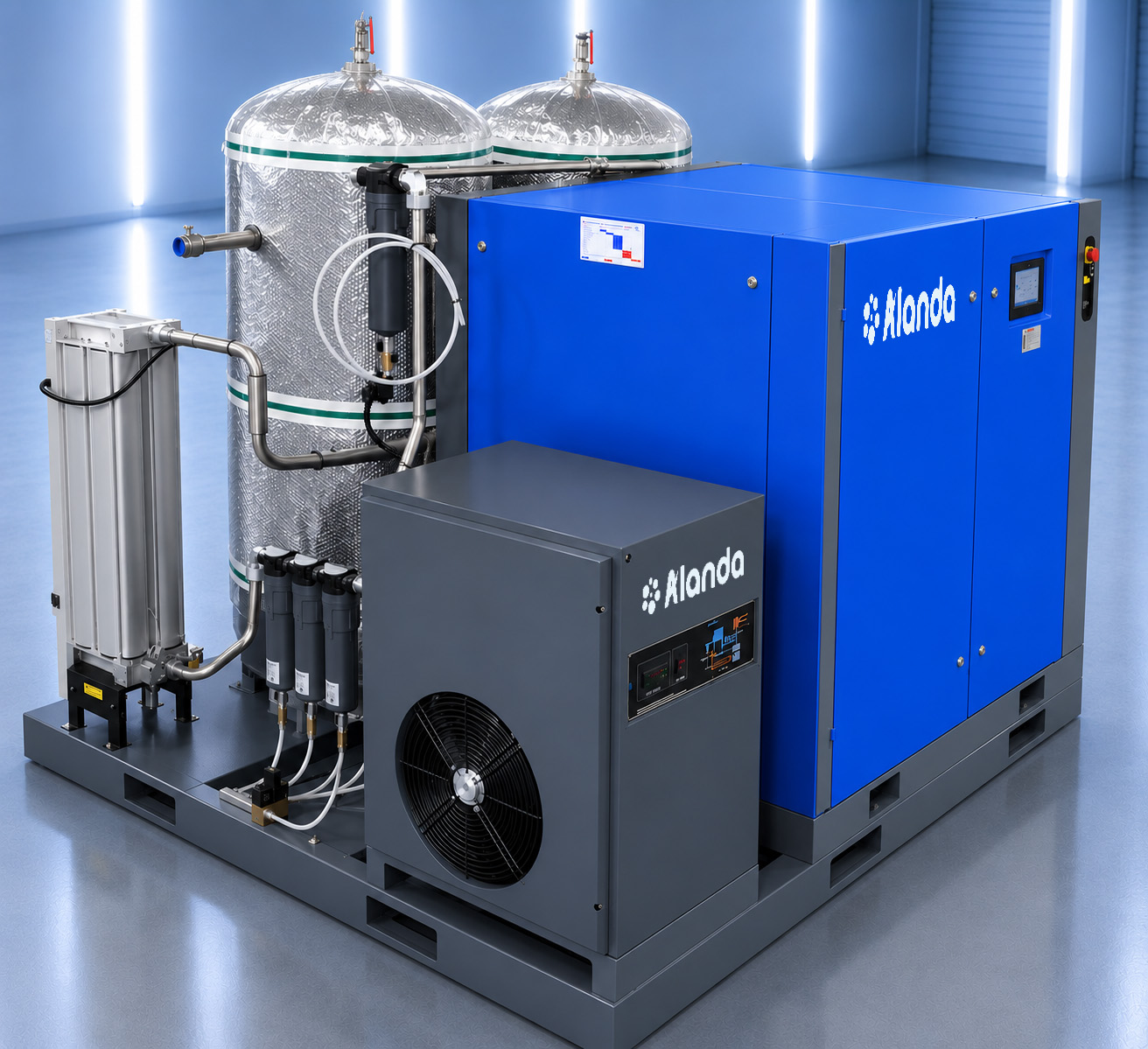

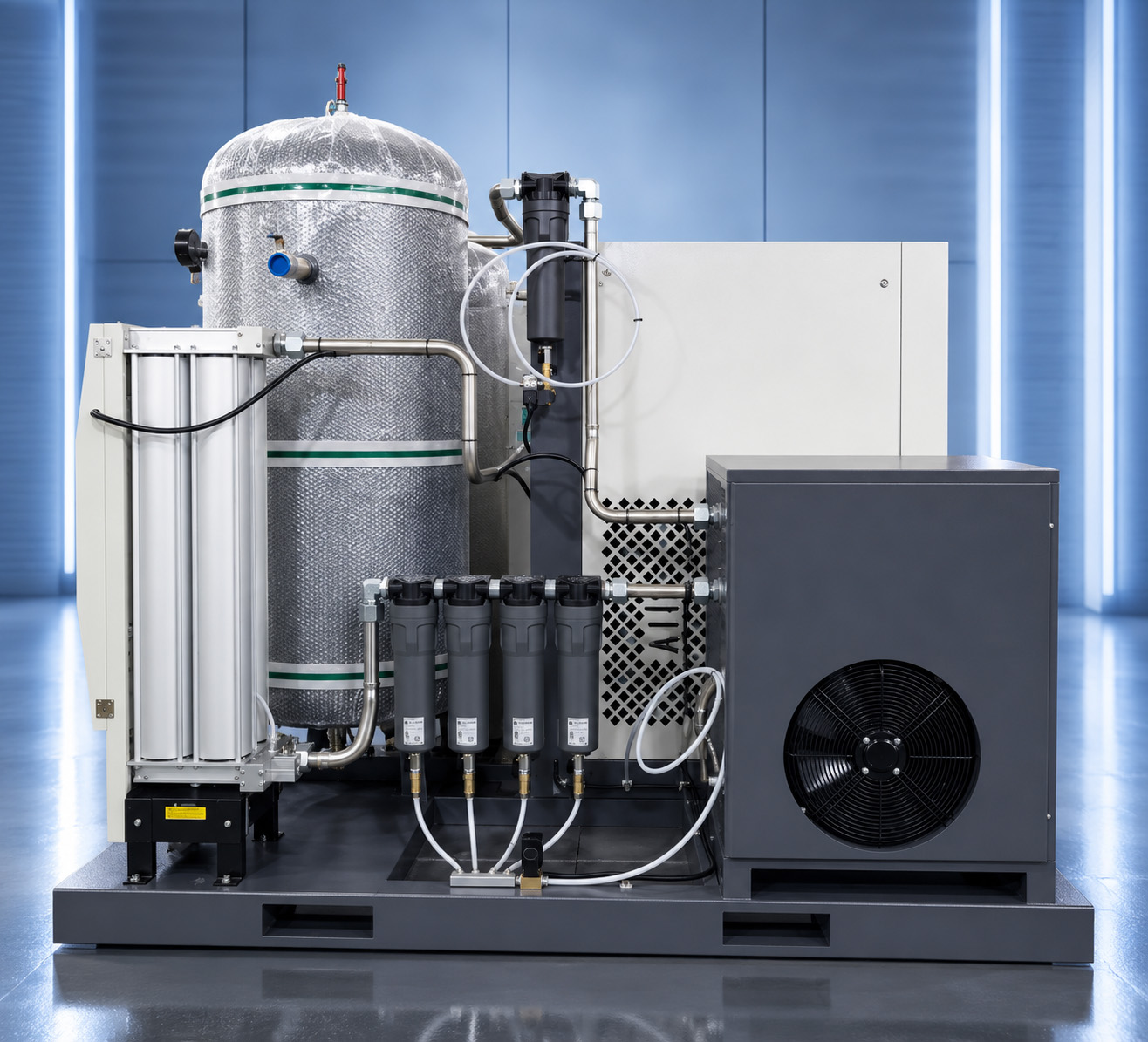

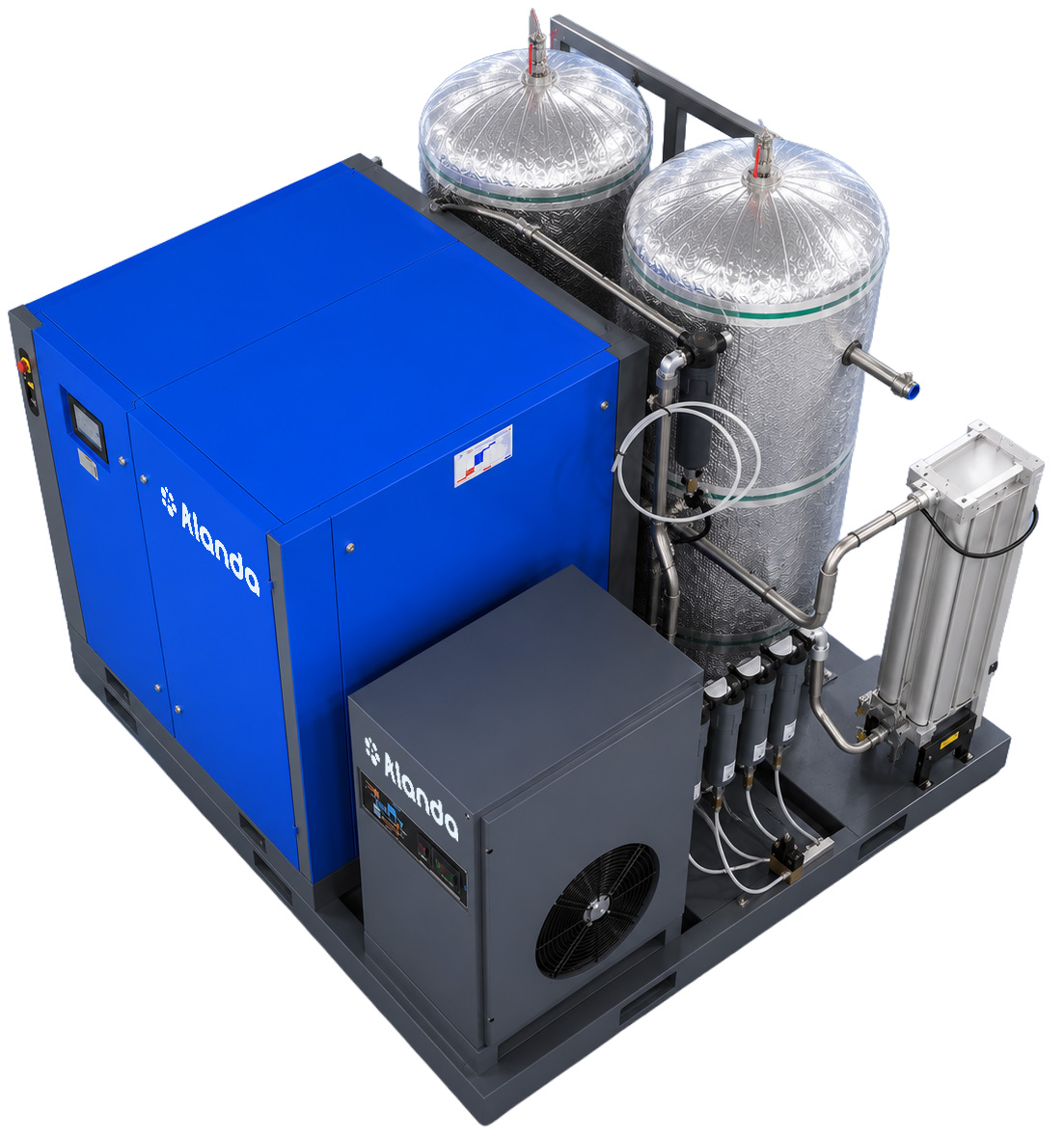

The 16 Bar Skid-Mounted Air Compressor System integrates a PM VSD screw air compressor, high-efficiency air dryer, dual 600L air tanks, modular adsorption dryer, and CTAFH 5-stage precision filtration into a compact skid-mounted package. Designed for laser cutting applications, it delivers clean, dry compressed air with energy-efficient performance, easy installation, and reliable continuous operation.
Advantages

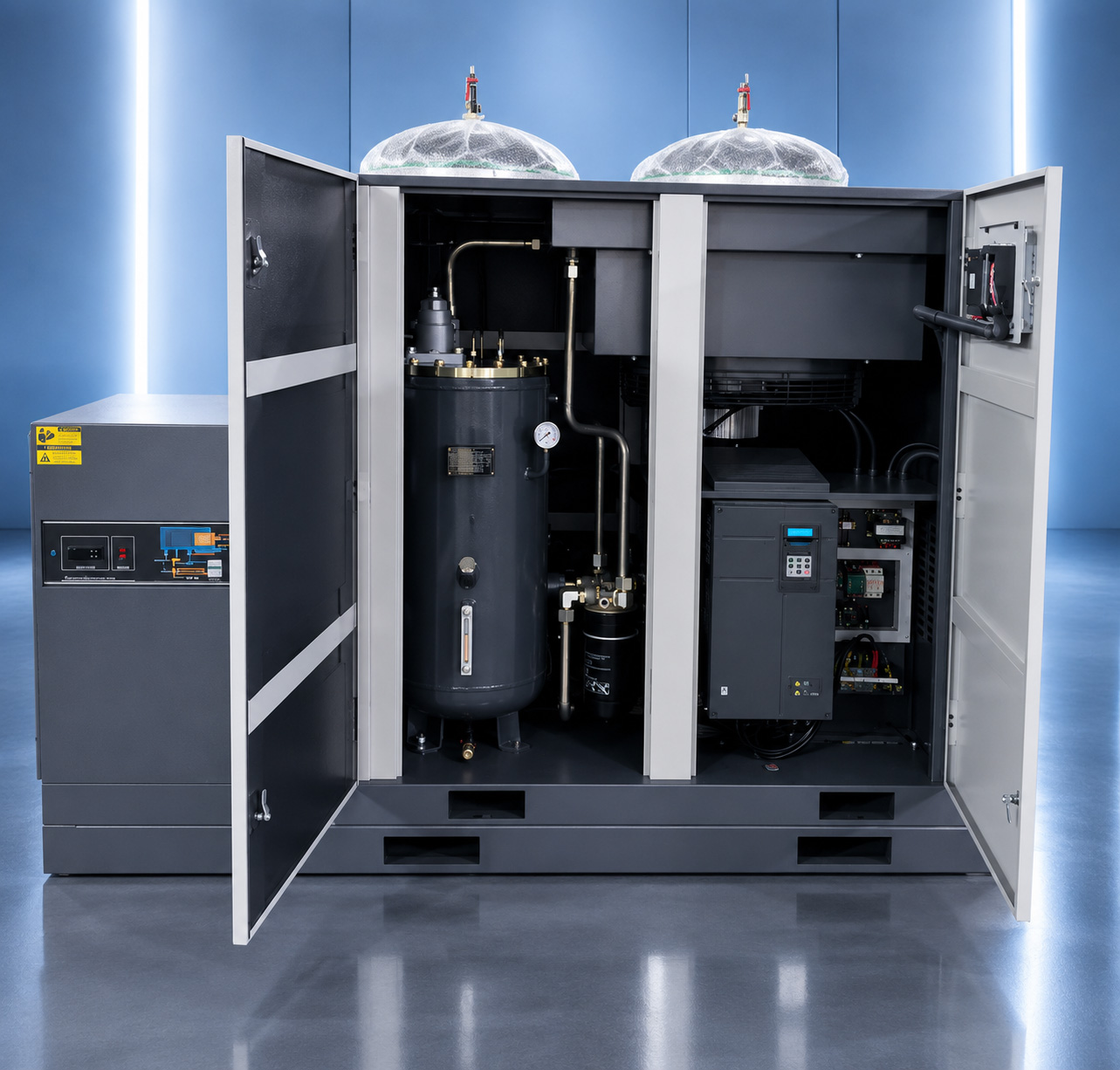

PM VSD Screw Air Compressor: Permanent magnet variable speed technology reduces energy consumption by up to 30% while delivering stable, high-efficiency compressed air.
Modular Adsorption Dryer: Space-saving design with low power consumption, stable pressure dew point, and highly efficient moisture removal.
5-Stage Precision Filtration: Removes dust, water, and oil with filtration accuracy of up to 0.001 ìm, ensuring ultra-clean compressed air.

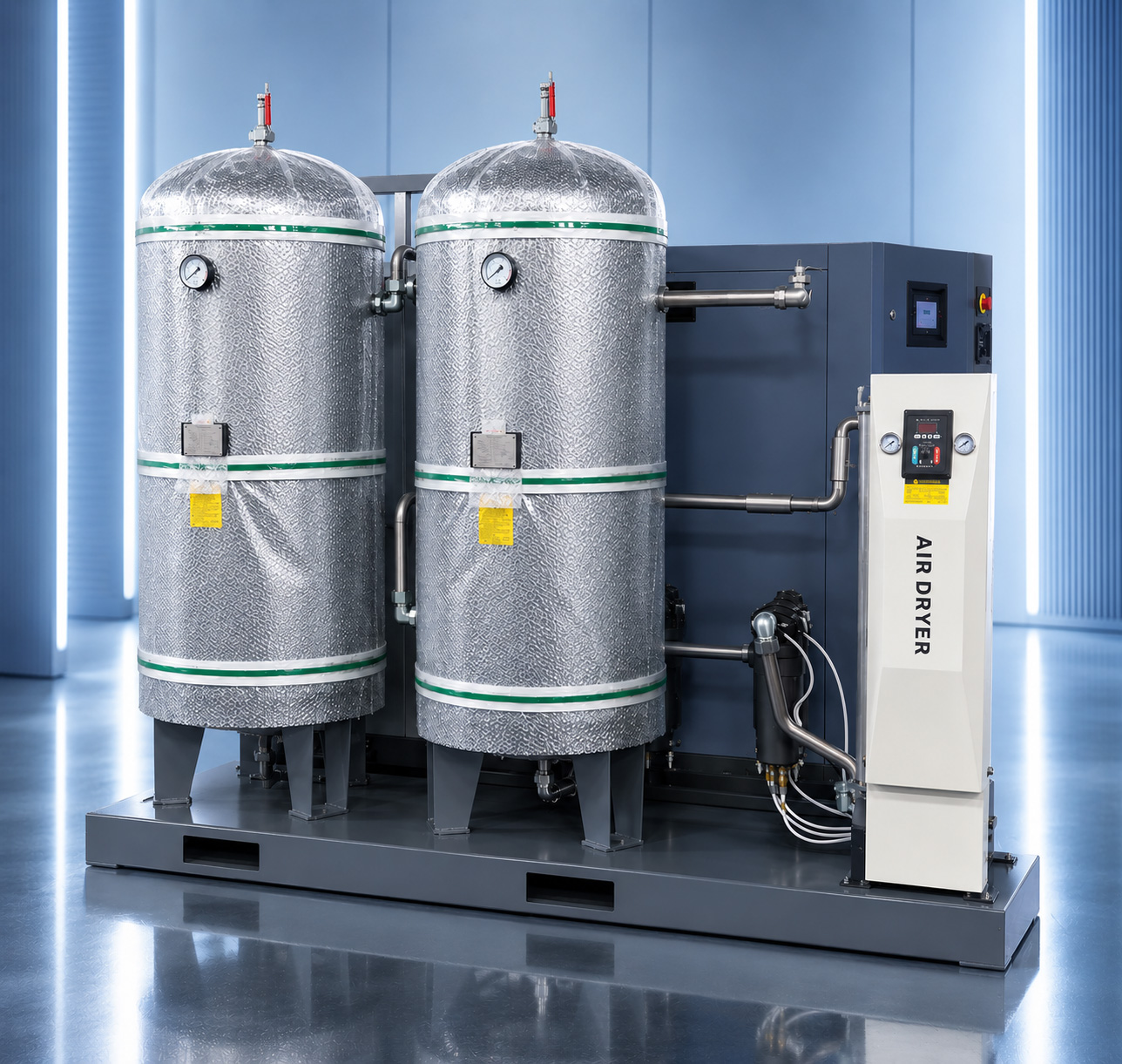

Dual 600L Air Tanks: Total 1,200L air storage capacity provides a stable and reliable air supply for continuous operation.
Complete Air Treatment System: High-efficiency refrigerated air dryer, modular adsorption dryer, and 5-stage precision filtration deliver clean, dry air to protect laser cutting optics and extend lens life.
High Air Delivery Capacity: Designed to supply compressed air to multiple laser cutting machines simultaneously, ensuring reliable performance in high-production environments.
Skid Mounted Laser Compressor-16 bar
| Model | Power | Pressure | Air Supply | Type | Size | Outlet size | Filter level | Filtration accuracy |
|---|---|---|---|---|---|---|---|---|
| Laser-40PV/16 | 30KW 40HP | 16bar | 3.4 m3/min 119 cfm | PM VSD with Inverter | 2130*1980*2180 mm | G 1'' = DN25 | CTAFH 5-class | Oil removal Water removal Dust removal Filtration accuracy: 0.001 um |
| Laser-50PV/16 | 37KW 50HP | 16bar | 4.2 m3/min 147 cfm | PM VSD with Inverter | 2130*1980*2180 mm | G 1'' = DN25 | CTAFH 5-class | Oil removal Water removal Dust removal Filtration accuracy: 0.001 um |
